Selling Point

1. We have adopted reinforced needle roller bearings to enhance load-bearing capacity and reduce friction losses, ensuring stability and durability at high speeds and high loads.


2. The application of KU303816 plastic drilling film technology can effectively reduce the friction coefficient, decrease wear, improve lubrication efficiency, and thus extend the service life of the engine.


3. Sliding clutch technology can effectively alleviate the impact during acceleration and deceleration, improve the smoothness of power transmission, enhance handling stability, and especially improve the riding experience in urban cycling or complex road conditions.


4. The V-shaped cylinder layout optimizes the center of gravity and overall structure of the engine, enhancing the vehicle's handling performance.


Technical Parameter

Project
Value
Engine name
NM2V300
Displacement(cc)
296
Engine mode
2-cylinder/4-stroke/4-valve
Bore x stroke(mm)
φ58*56
Max.power
22.5/8500r/min
Max.torque
25.2/6500r/min
Compression ratio
11.8:1
Cooling system
Liquid-cooled
Gear shifting type
6-speed
Clutch type
Wet multi-plate
Valve train
DOHC
Ignition
T.C.I.
Starter
Electric
Lubrication system
Pressure splash lubrication
Weight(kg)
Net weight 44KG

External characteristic curve graph

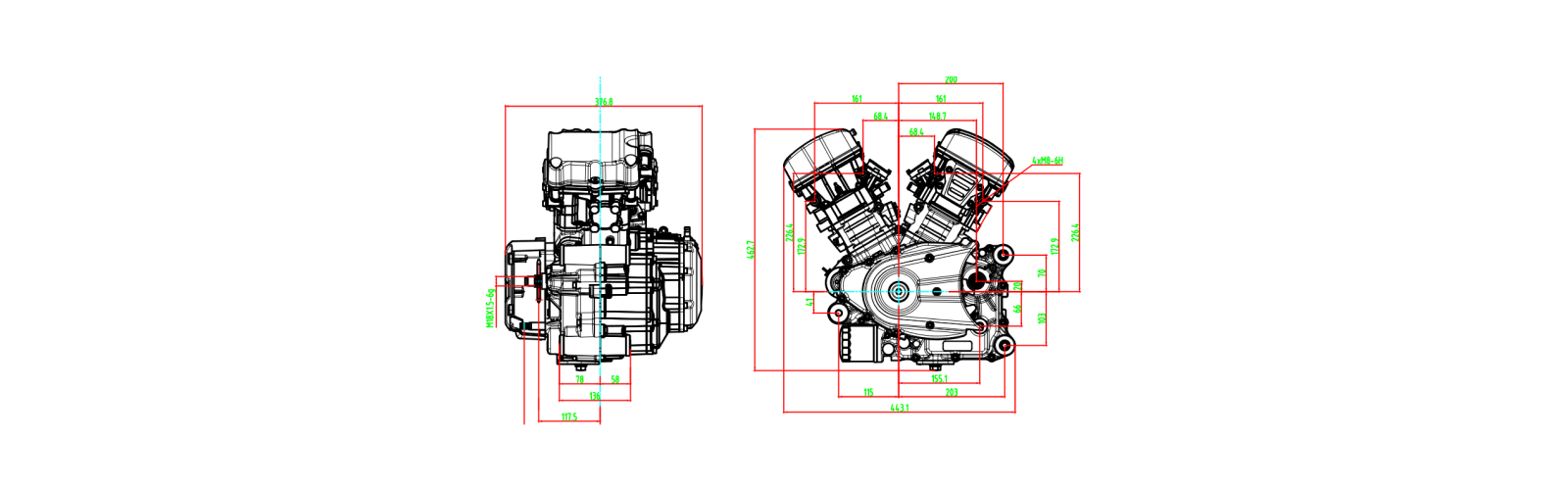

Lifting size
