Phoenix

Retro aesthetics&& Integrated steel frame

MOTORCYCLE
NOOMA

Phoenix

Nooma models may have different specifications to comply with local regulations, and maybe modified to meet specific demands in a particular region.

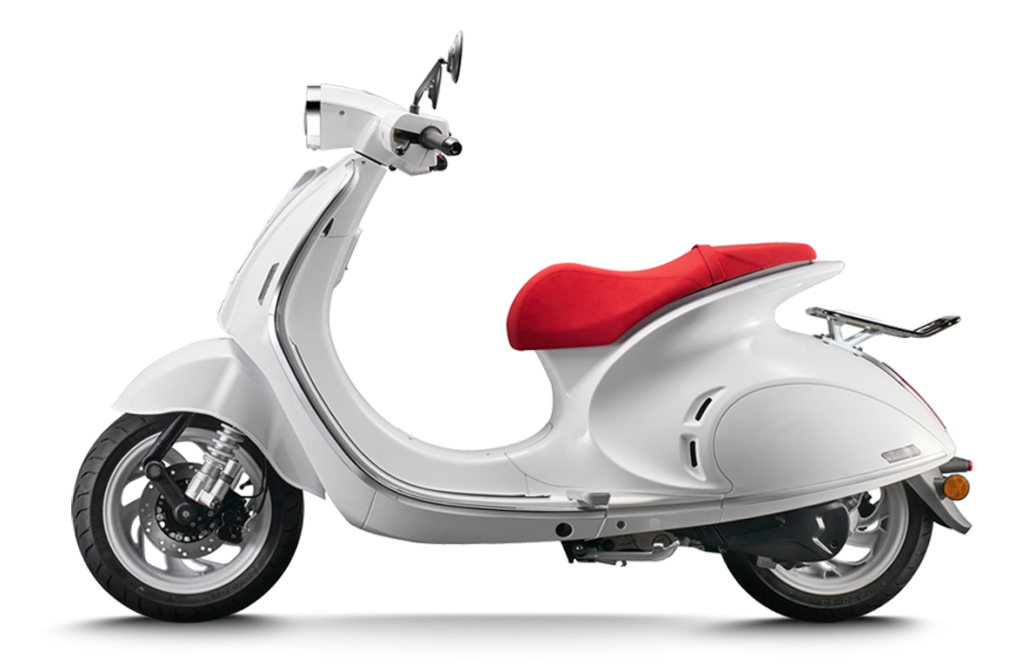

Moonlight White:

Phoenix Parameter

  • Model Size: 2180*765*1075mm
  • Wheel base: 1413mm,760mm
  • Tank capacity: 9L
  • Rated load: 150kgs
  • Displacement : 150cc
  • Lighting form: LED
View all parameter configurations
Download document

Phoenix

name
value
Model Size:
2180*765*1075mm
Wheel base:
1413mm,760mm
Tank capacity:
9L
Rated load:
150kgs
Displacement :
150cc
Lighting form:
LED
Maximum speed:
100km/h
Hub form:
Aluminium alloy
Braking mode:
Hydraulic disc brake
Tire Specifications:
120/70-13; 120/70-13
Hub specifications:
3.50-17; 4.50-17
Suspension system:
Single rocker arm is adjustable in three stages;Rear dual shock absorption
ECO consumption:
3.4L/100km
Battery Specifications:
12V7AH
Form of instrument:
TFT
Max power:
1.6Kw/8500rpm
Max torque :
14.7N.m/7000rpm
Mode of cooling:
Water cooled;Keyless start
USB charging port:
Auto-sensing headlights

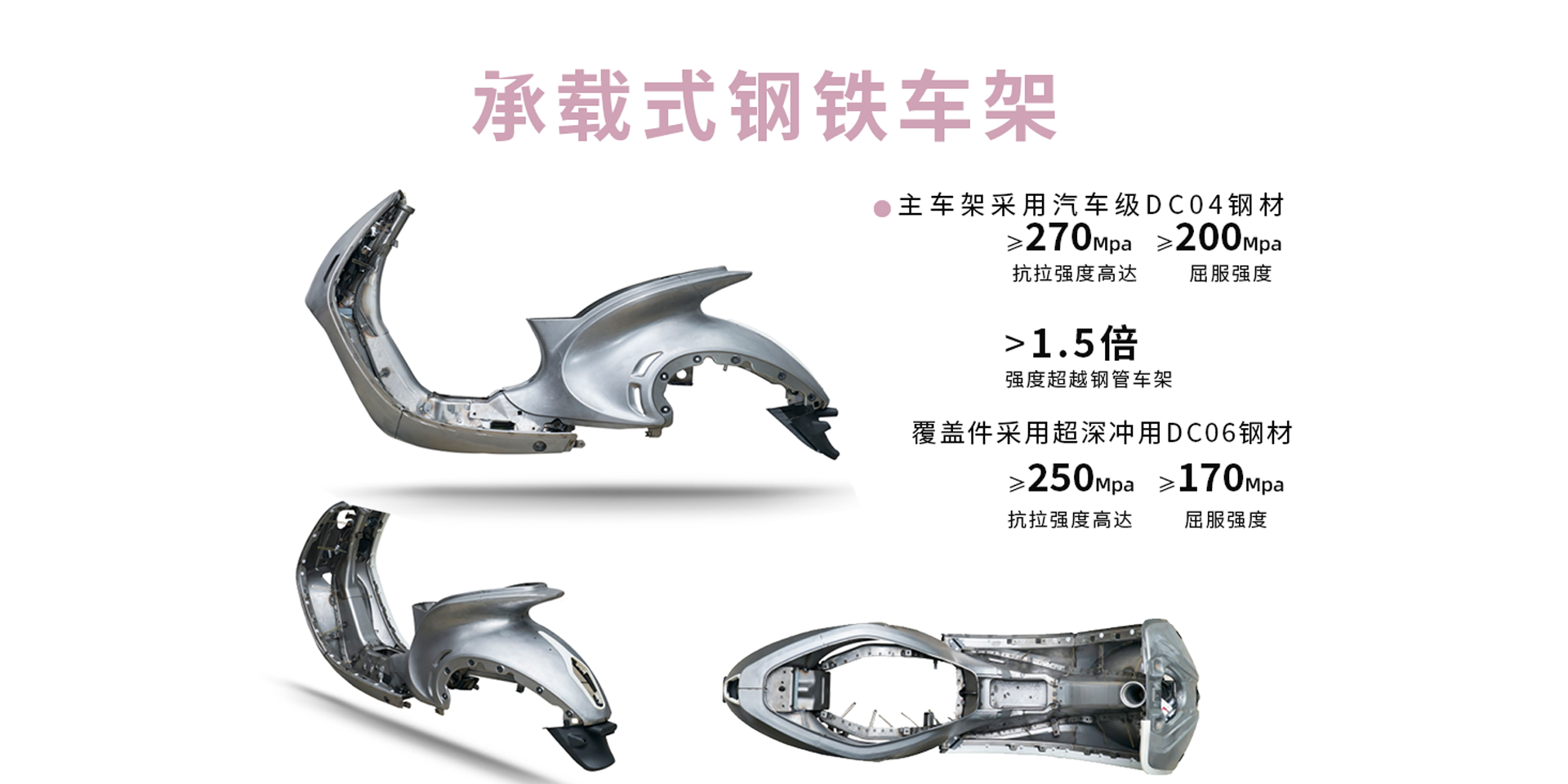

Reinforced Steel Frame

The main frame is constructed using automotive-grade DC04 steel with:

Tensile Strength: >270MPa

Yield Strength: >200MPa

Providing a strength increase of over 1.5 times compared to traditional steel tube frames.

The body panels are made from ultra-deep-drawn DC06 steel, offering:

Tensile Strength: >250MPa

Yield Strength: ≥170MPa

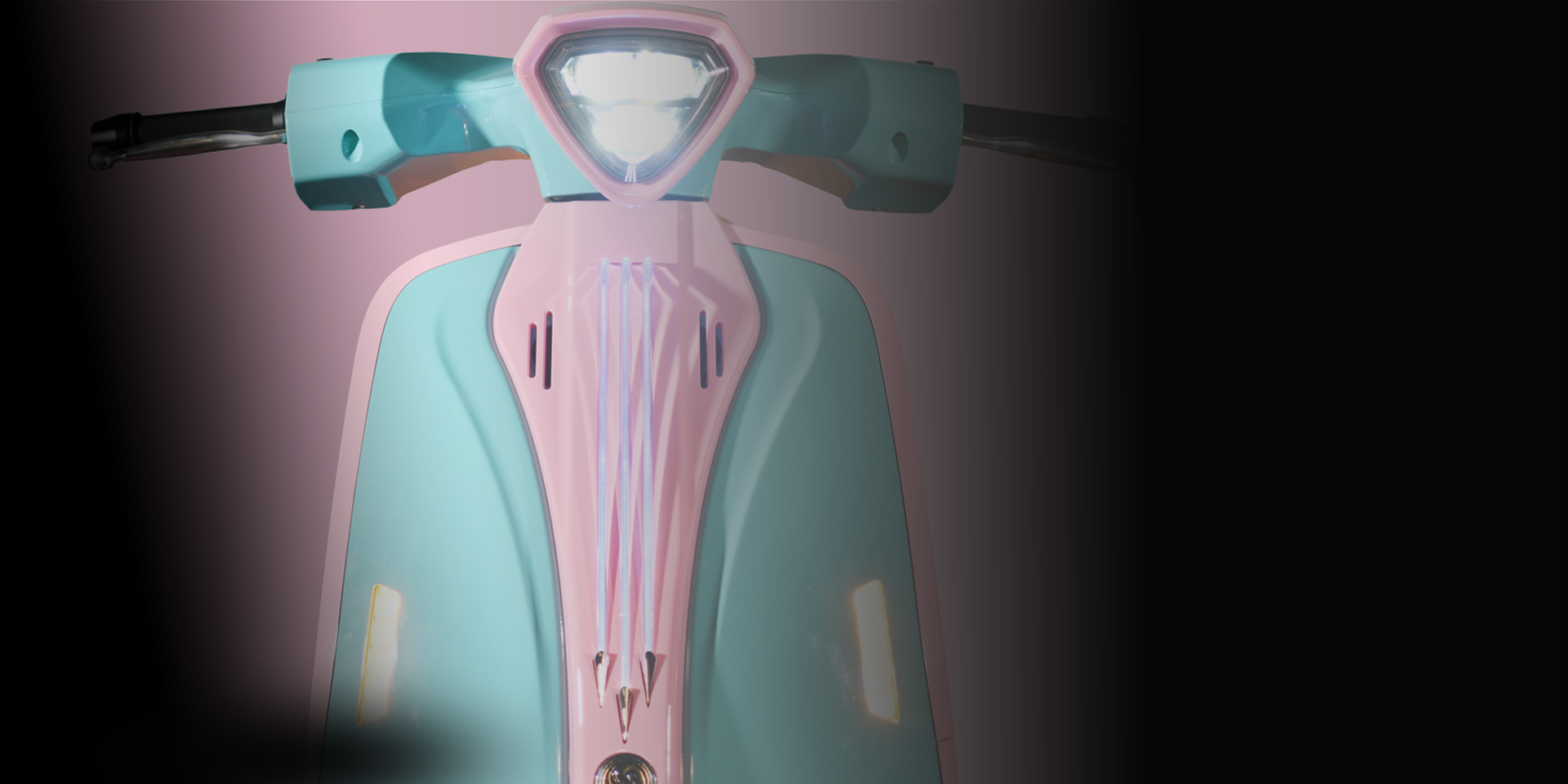

Automatic Headlamp with Keyless Start

The automatic sensing headlamp ensures increased safety by automatically adjusting to light conditions.

With keyless ignition and energy-efficient engine start/stop functionality, the bike combines convenience, eco-friendliness, and smart technology for an enhanced riding experience.

The pulse ignition system improves throttle response, offering the perfect balance of power and comfort.

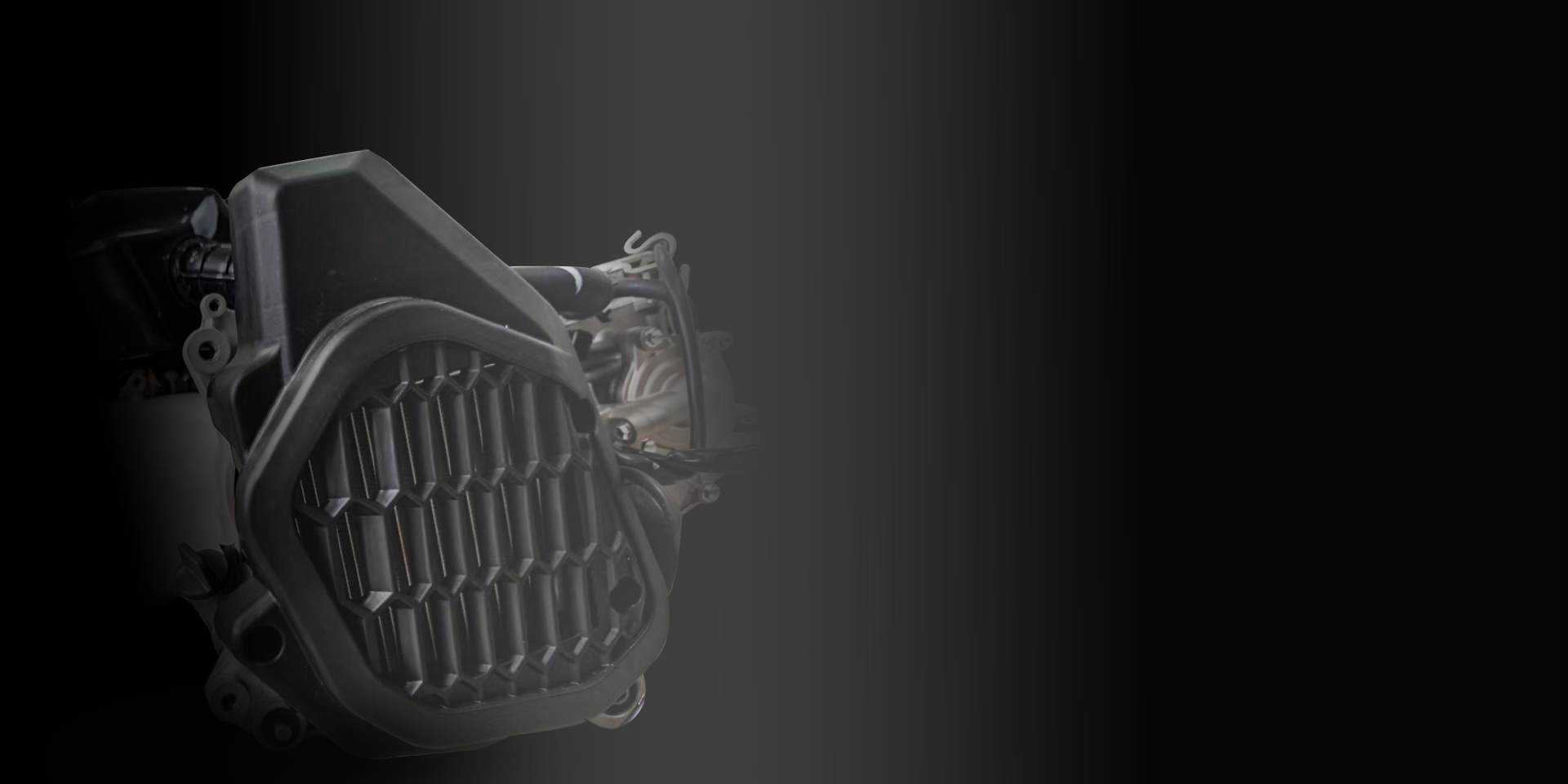

Liquid-Cooled 150CC Four-Valve Engine

A perfect combination of power and efficiency:

Max Power: 11.6kw at 8500RPM

Max Torque: 14.7N·m at 6500RPM

Valve Configuration: 4-valve

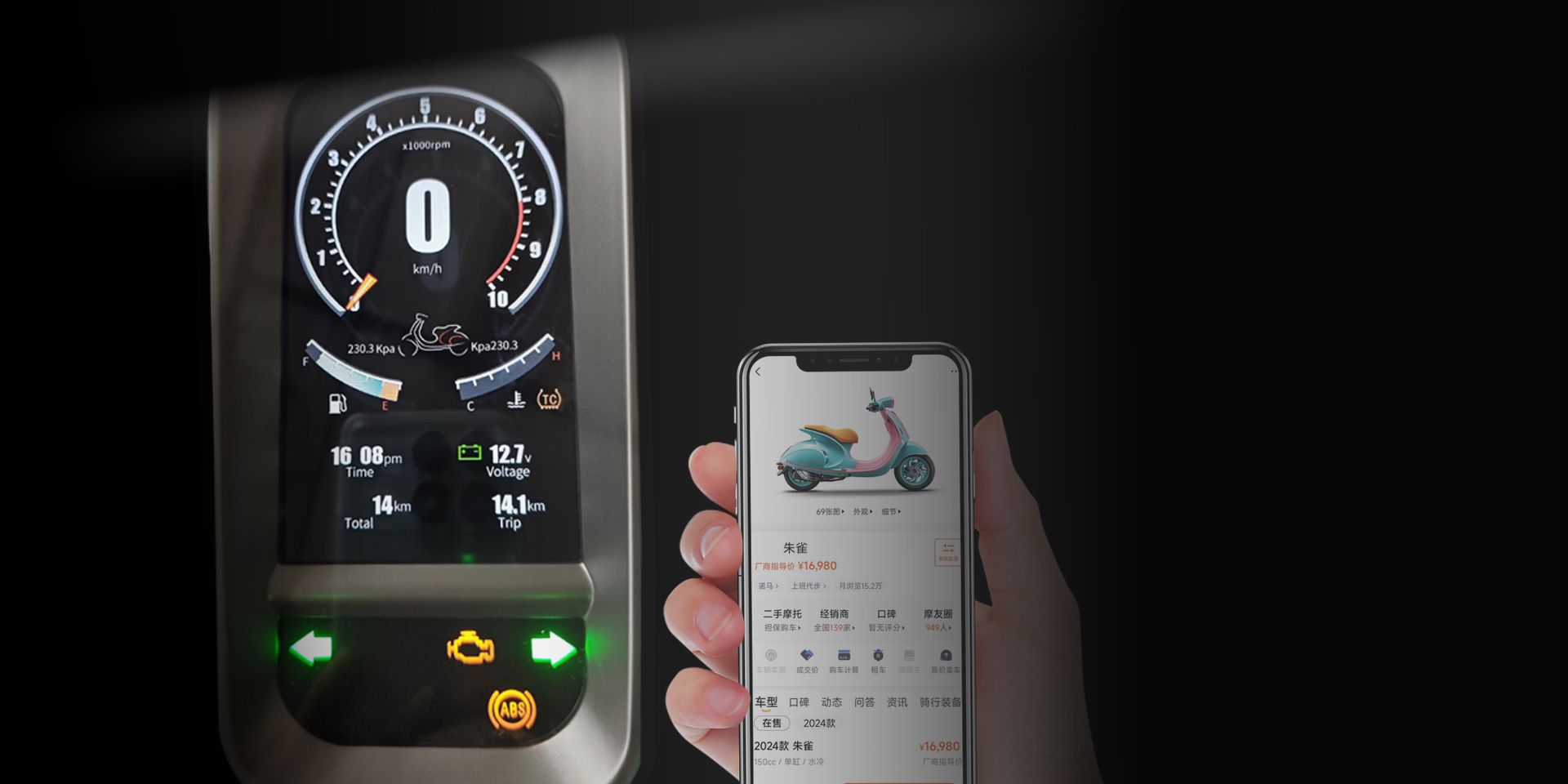

Instrumento TF de color de pantalla grande

A large, high-definition color LCD display provides a clear view of key metrics, including speed, RPM, and more, making your ride safer and more convenient.

Features include tire pressure monitoring and Bluetooth screen mirroring.

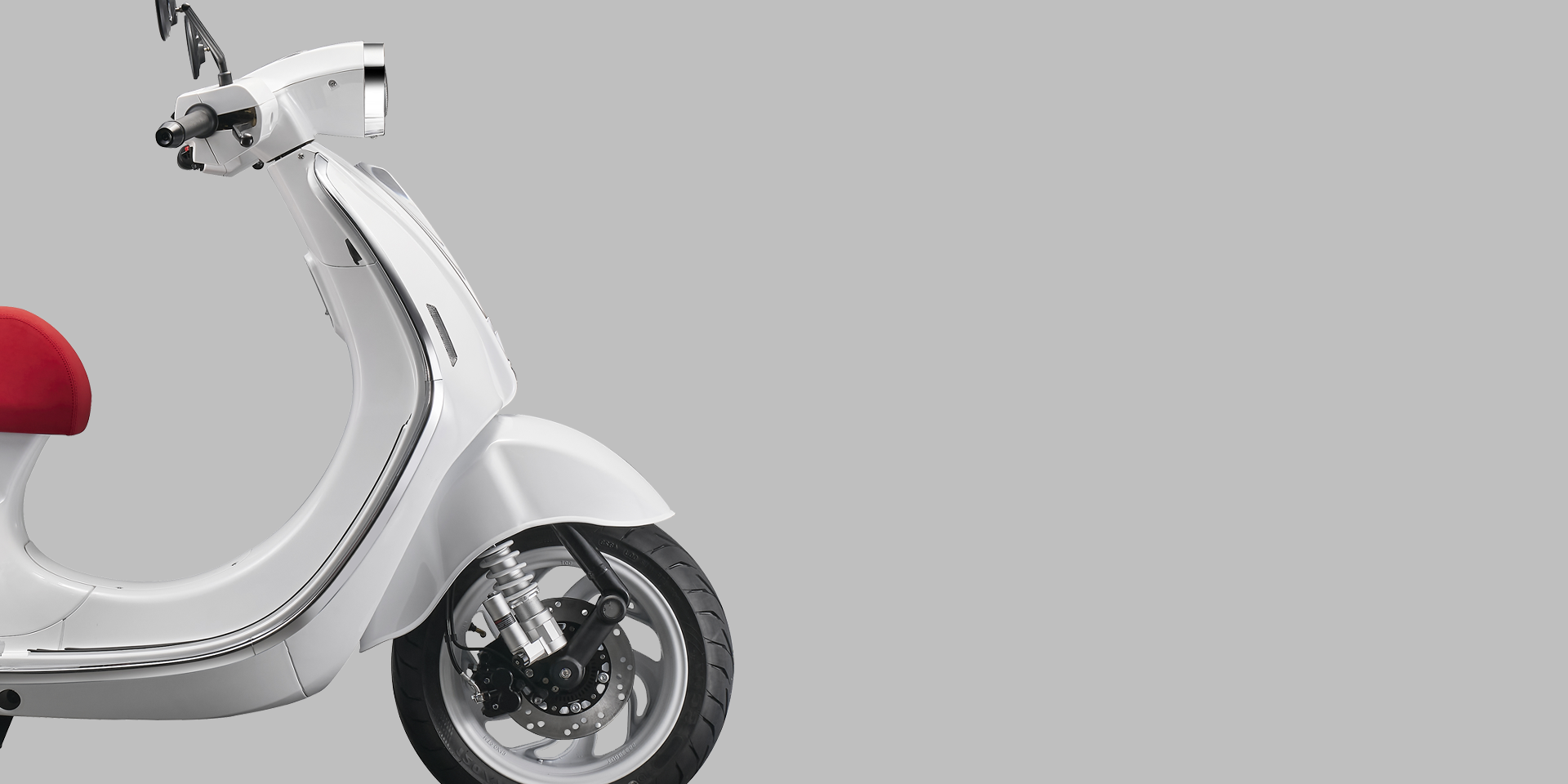

Single Swingarm Suspension

Experience precise, smooth handling through turns, acceleration, and braking. The suspension is tuned for stability, ensuring comfort and control while meeting the performance needs of all riders.

Triple Safety Protection

With ABS Anti-lock Braking System, TCS Traction Control System, and dual-disc front and rear brakes, the bike offers triple-layer safety protection to keep you secure on every ride.
